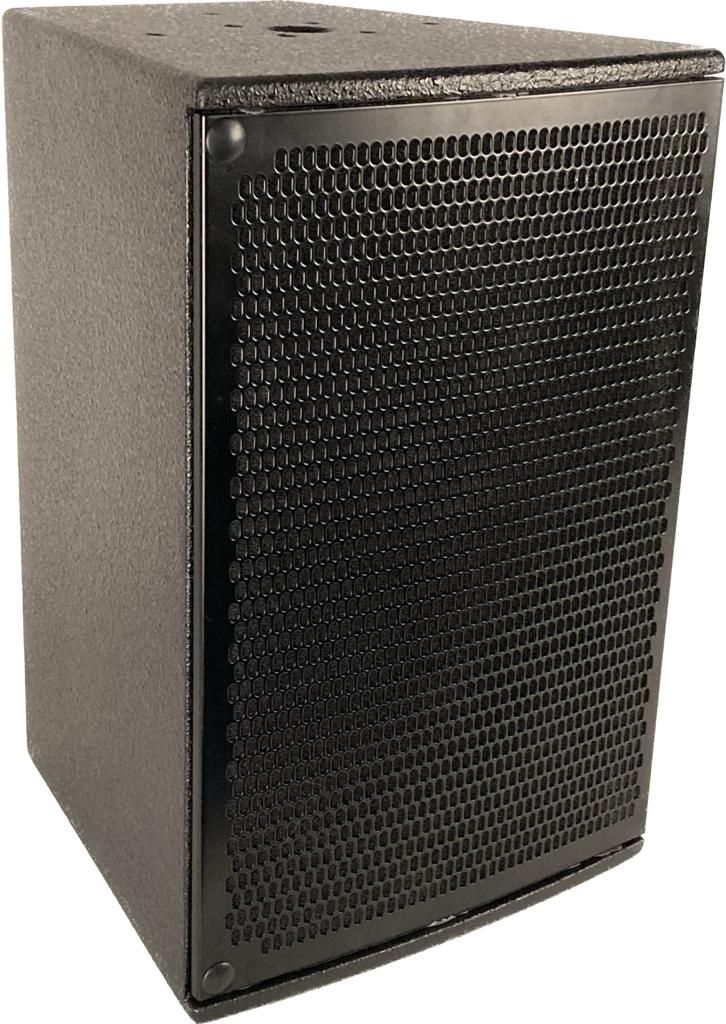

i12 is a compact passive two-way trapezoidal loudspeaker enclosure. It consists of coaxial 12” + 1” neodymium driver with separate horn for high frequency part. With 80x60 degree dispersion this separate horn enables better control for high frequencies compared to traditional coaxial drivers. Horn assembly is also rotatable making the loudspeaker easy to adjust according to installation.

i12 features internal passive crossover, phase-align and EQ network. Together with this unique coaxial driver this ensures a seamless and phase coherent transition between low and high frequency bands. As a dedicated installation enclosure i12 only features M8 rigging points.

APPLICATIONS

• small to medium installations
• night clubs and music bars
• speech reinforcement
• music reinforcement with subwoofer

FEATURES

• rotatable 60 x 80 degree coverage pattern
• 12” high power coaxial driver
• M8 rigging points
• rugged birch plywood construction
• textured semi-matt black paint finish

i12 - SPECIFICATIONS

• Frequency Response (-6 dB): 65 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 80 degrees, rotatable
• Vertical Coverage (-6 dB): 60 degrees, rotatable
• Max SPL : 123/129 dB (free space)
• Sensitivity, 1w/1m: 97 dB (free space)
• Impedance: 8 ohms Crossover: 2.2 kHz passive
• Power handling: 400 W cont, 1600 W peak
• Recommended HP-filter: 80 Hz, 24 dB/octave

Drivers

• LF: (1) x 12” neodymium magnet cone driver, reflex-tuned
• HF: (1) x 1” compression driver, coaxial

Enclosure

• Enclosure material: Bended birch plywood, textured black paint finish
• Grille: Cold rolled steel grille, textured black paint finish
• Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
• Dimensions: 505 mm x 340 mm x 350 mm
• Weight: 16 kg
