A6

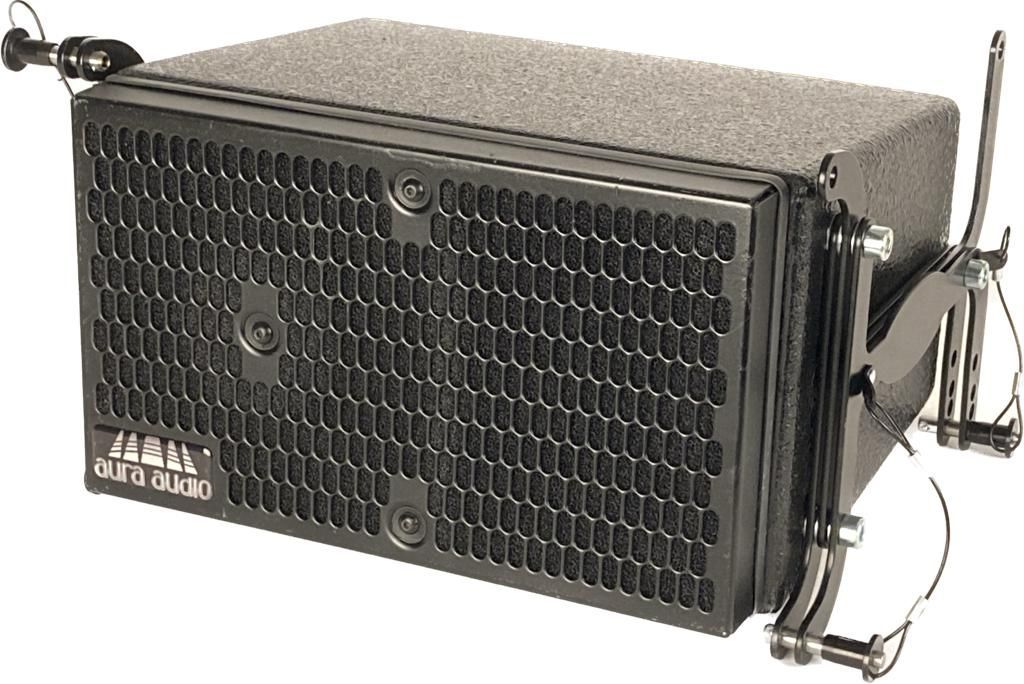

A6 is a compact passive 2-way trapezoidal loudspeaker enclosure. It consists of high excursion 6.5” neodymium cone driver and 0,65” exit compression driver loaded with dedicated high directivity horn. With unique 90x12 degree dispersion the loudspeaker makes it easy to cover only a specific area according to installation.

A6 features internal passive crossover, phase-align and EQ network, which ensures a seamless and phase coherent transition between low and high frequency bands. As a multifunctional enclosure A6 features dedicated M8 rigging points. A6Rx rigging systems couple two or more enclosures for seamless vertical or horizontal arrays with user adjustable dispersion. Up to six A6 loudspeakers can be driven with a single D80DSP power amplifier channel and two with D2x.

APPLICATIONS

  • Small to medium high-end installations
  • Touring in mid size venues with subwoofer
  • Front fills and side fills Corporate events
  • Array depending vertical coverage pattern
  • system is configurable from 1 to 12 units
  • dedicated optional rigging hardware (A6R)

SPECIFICATIONS

  • Frequency Response (-6 dB): 100 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 90 degrees
  • Vertical Coverage (-6 dB): 12 degrees
  • Max SPL: 116/121 dB (free space, single unit, D2k)
  • Max SPL: 128/133 dB (free space, four (4) units, D2k)
  • Sensitivity, 1w/1m LF: 94 dB (free space)
  • Nominal Impedance: 16 ohms (12 ohms minimum)
  • Power handling: 125 W cont, 500 W peak

DRIVERS

  • LF: (1) x 6.5” neodymium magnet cone driver, reflex-tuned
  • HF: (1) x 0.65” exit compression drivers, dedicated multi-path waveguide

ENCLOSURE

  • Enclosure material: Birch plywood, textured black paint finish
  • Grille: Cold rolled steel grille, textured black paint finish
  • Connectors: (2) x NL4, +/1: IN, +/-2 linked
  • Dimensions: 305 x 180 x 240mm (265mm incl. rigging hardware)
  • Weight: 6.5 kg (7kg incl. rigging hardware)
