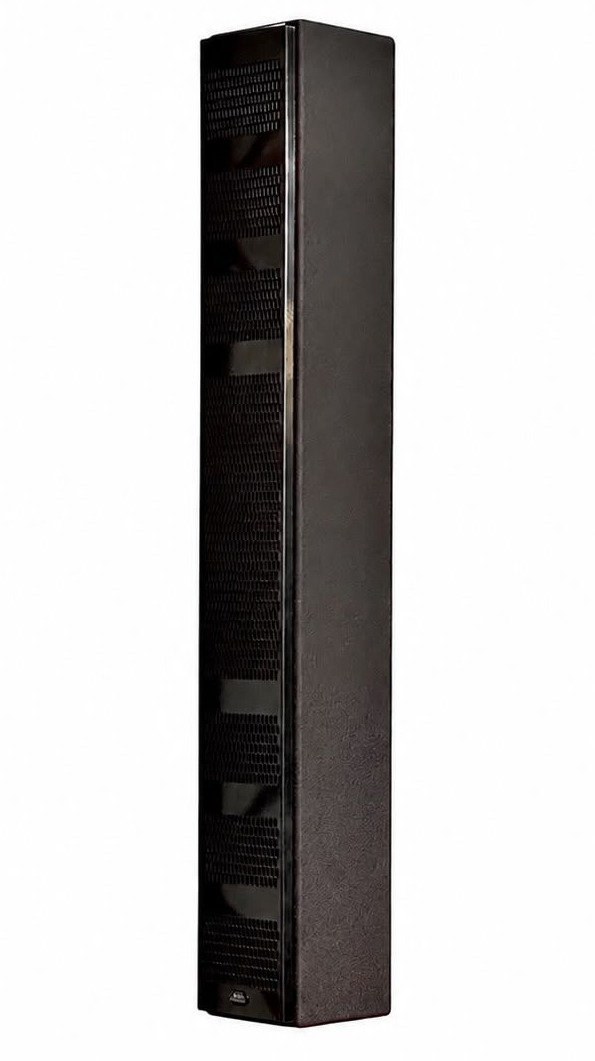

iCL Column Speaker
iCL is a compact passive column loudspeaker based on the
same unique high sensitivity 3” cone driver + waveguide combination used in all i3 and F-Series products. Unique
2-way design features four (4) 3" drivers in a custom acoustic waveguide increasing internal summing, directivity and efficiency. Low frequencies are extended using four (4) 5" cone drivers in a reflex-tuned enclosure. Using very low-order crossover, a phase-shift-free frequency range is extended from 200Hz till 20kHz with all eight (8) drivers working together from 250Hz to 2kHz increasing system headroom and controlled constant vertical directivity.
iCL features the same natural uncolored acoustic reproduction as the other i-Series models.

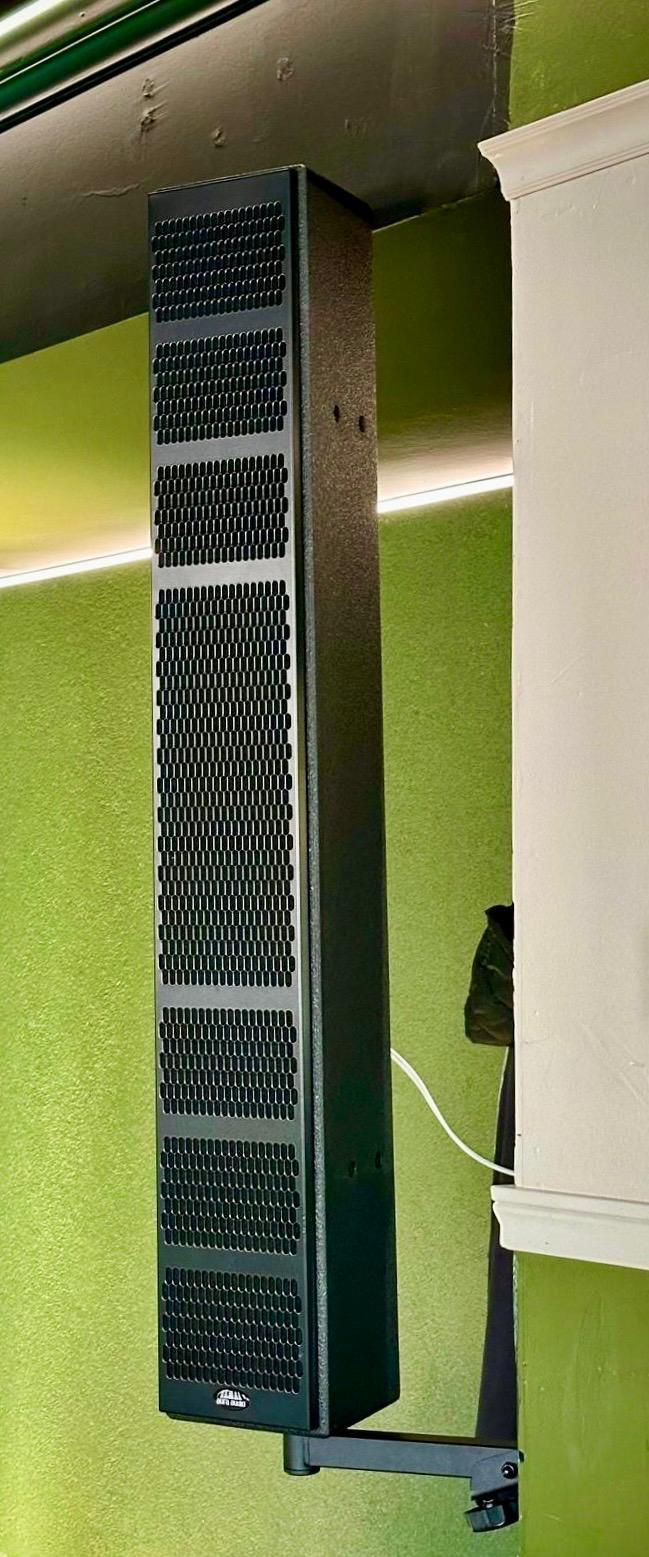

The acoustic output of the iCL is easily comparable to most standard 12”+1" or double 8" loudspeakers but with increased far field projection. As a multi purpose enclosure, iCL features M8 rigging points as well as standard 35mm pole mount adapter. Available in black or white textured paint finishes the iCL is a flexible installation speaker.
APPLICATIONS
- Small to medium installations
- Houses of worship and music bars
- Speech reinforcement
- Music reinforcement with S10C, i8SUB subwoofer
- 100V line option with transformer (iCL-100V)
SPECIFICATIONS
- Frequency Response (-5 dB): 90 Hz – 18 kHz
- Horizontal Coverage (-6 dB): 90 degrees
- Vertical Coverage (-6 dB): 15 degrees
- Max SPL(cont/peak): 120/126 dB (free space)
- Sensitivity 1w/1m: 95 dB (free space)
- Impedance: 8 ohms
- Power handling: 300 W cont, 1200 W peak
- Recommended HP-filter: 80 Hz, 12 dB/octave
DRIVERS
- LF: (4) x 5” cone driver, reflex-loaded
- HF: (4) x 3” cone driver, horn-loaded
ENCLOSURE
- Enclosure material: Birch plywood, textured black paint
- Grille: Cold rolled steel grille, black foam
- Connectors: Speakon NL4
- Dimensions (H/W/D): 1180 mm x 175 mm x 190 mm
- Weight: 18 kg
