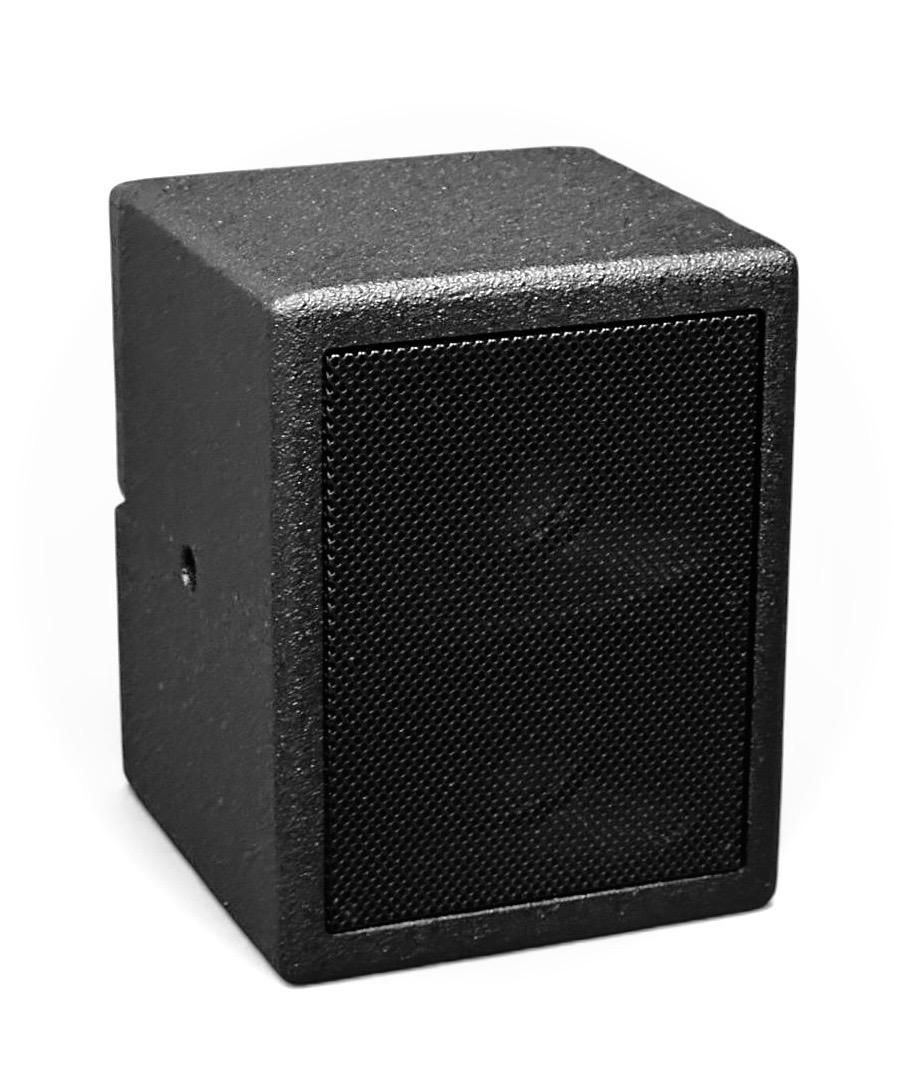

i3DW Ultra compact passive loudspeaker

The i3DW is a compact passive loudspeaker. Based on two 3” full range drivers in a proprietary waveguide and a passive radiator, this design increases mid and high frequency efficiency and directivity while extending the low-mid frequencies. 90x30 degree dispersion makes i3DW a real all-around loudspeaker with almost limitless possibilities!

i3DW does not feature any crossover and reflex tuning, which leads to naturally flat phase response and most accurate transient response with low decay and common tuning related problems. As a multi-purpose touring and installation enclosure i3DW features 8mm rigging points, U-bracket and selection of array accessories.

• Small to medium installations indoors and outdoors

• Night clubs and music bars
• Speech reinforcement
• Music reinforcement with XD10 subwoofer
• 100V line option with transformer (i3DW-100V)

• Frequency Response (-10 dB): 80 Hz – 18 kHz
• Horizontal Coverage (-6 dB): 90 degrees
• Vertical Coverage (-6 dB): 30 degrees
• Max SPL(cont/peak): 111/118 dB (free space)
• Sensitivity 1w/1m: 95 dB (free space)
• Impedance: 8 ohms (32 ohm option)
• Power handling: 40 W cont, 160 W peak
• Recommended HP-filter: 80 Hz, 12 dB/octave

• LF/HF: (2) x 3” cone driver, horn-loaded
• Passive radiator

• Enclosure material: birch plywood and steel plate
• Grille: Cold rolled steel grille
• Connectors: Speakon NL4
• Dimensions (H/W/D): 220 mm x 175 mm x 185 mm
• Weight: 3 kg
