S-series
BROADBAND DIRECTIVITY MADE SIMPLE
S-series - the second generation of Passive End Fire Technology

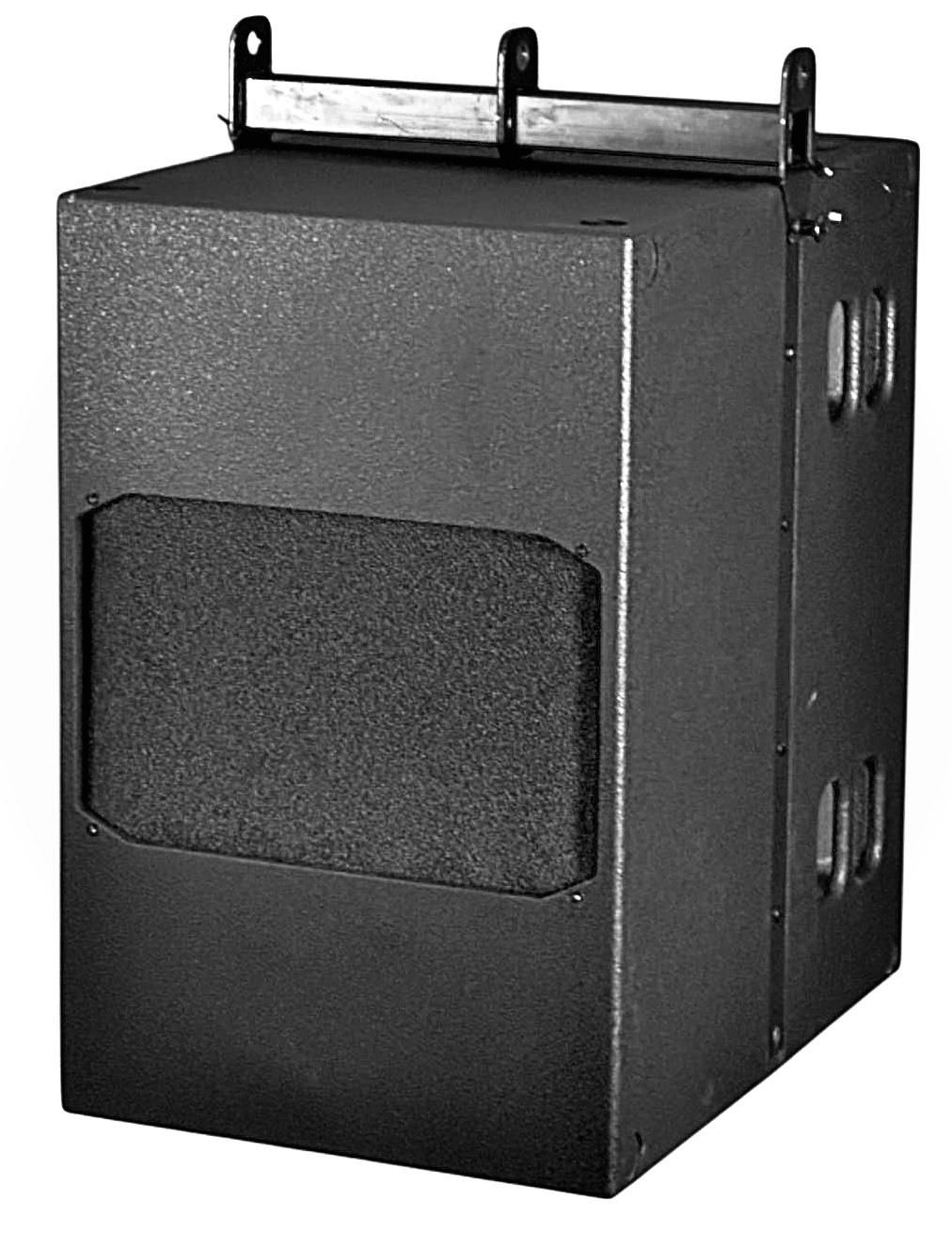

S28C
Compact "all-in-one" High Power Passive Cardiod Subwoofer

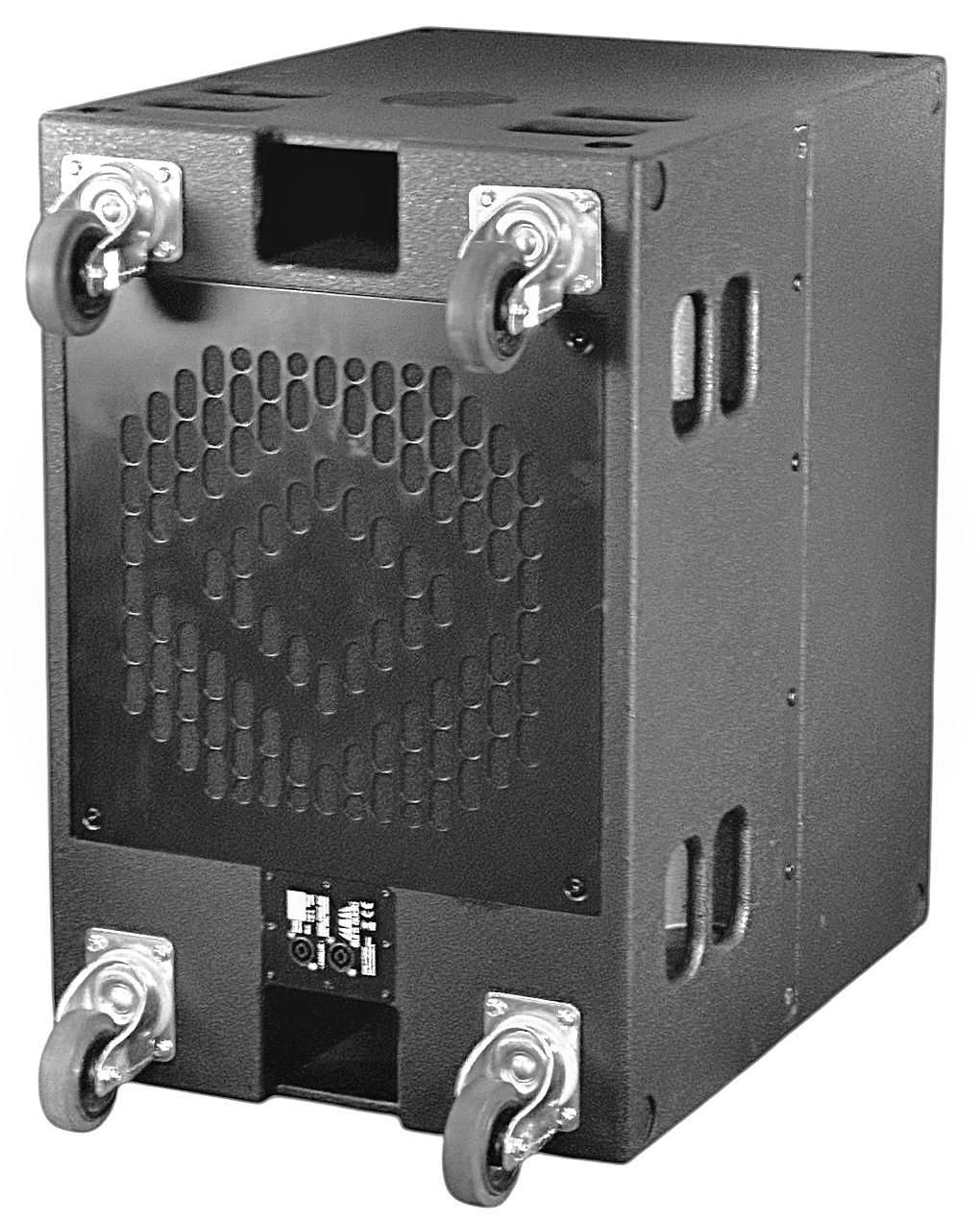

S28C is a combination of 18" horn-loaded cabinet side and 18" reflex-loaded driver rear cabinet working together creating a passive cardioid subwoofer system featuring Passive End Fire Technology.
Main features:
Low frequency directivity control with ONLY ONE amplifier channel required - no bi-amp presets required!
Patented Passive End Fire Technology hybrid enclosure design for the most efficient passive cardioid sub to date!
Integrated flying tracks on both sides and pole mount adapter.
"Best from both worlds" combining fast horn punch with warm infrasub rear reflex side.
Extremely accurate and dynamic low frequency reproduction due to symmetric twin horn channel design with double long excursion 18” neodymium cone drivers, one each side.
Rugged birch plywood construction with textured semi-matt black paint finish. S28Ci is avaible as a dedicated installation versio that features lighter enclosure without wheels and handles.
APPLICATIONS
- Noise sensitive installations
- Medium to large scale touring
- High end installations from night clubs to live music venues
- Low frequency extension for all S-series tops
SPECIFICATIONS
- Frequency Response (-6 dB): 44 Hz – 250 Hz
- Horizontal Coverage (-6 dB): 150 degrees
- Vertical Coverage (-6 dB): 150 degrees
- Max SPL : 133/139 dB (free space)
- Sensitivity, 1w/1m: 101 dB (free space)
- Impedance: 4 ohms (nominal)
- Crossover: 80 Hz – 100 Hz active
- Power handling: 1800 W(rms), 7200 W(peak)
- Recommended HP-filter: 40 Hz, 12 dB/octave
DRIVERS
- Front: (1) x 18” neodymium magnet cone driver, 4” voice coil
- Rear: (1) x 18” neodymium magnet cone driver, 3” voice coil
ENCLOSURE
- Enclosure material: Birch plywood, textured black paint finish
- Grille: Cold rolled steel grille, black paint finish
- Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
- Dimensions (H/W/D): 800 mm x 520 mm x 700 mm (830 w/wheels)
- Weight: 65 kg (60 kg S28Ci w/o wheels)
