S-series
BROADBAND DIRECTIVITY MADE SIMPLE
S-series - the second generation of Passive End Fire Technology

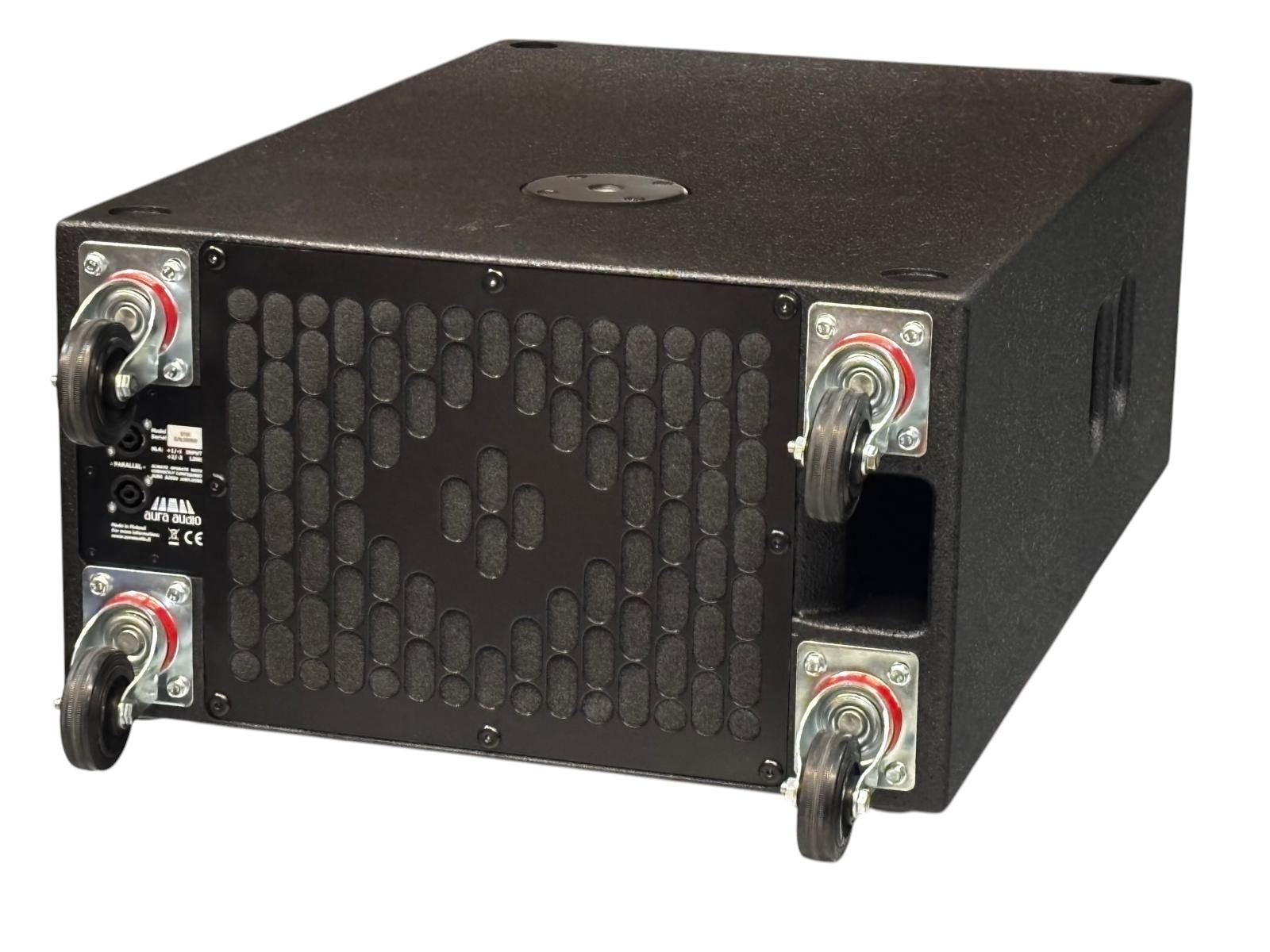

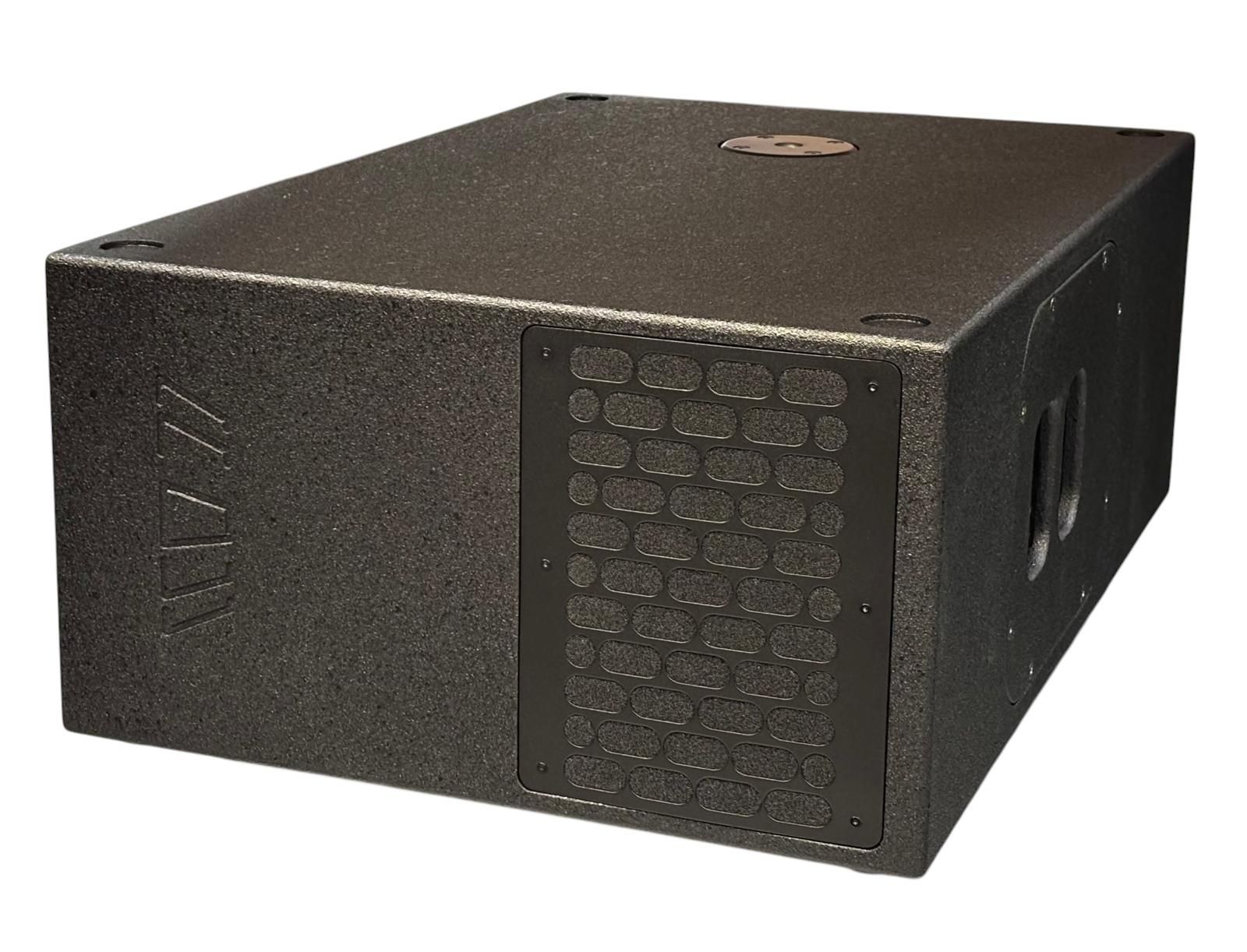

S10C
New standard for "all-in-one" Compact Passive Cardioid Subwoofer
S10C is a combination of horn-loaded 10” driver and second reflex-loaded 10" driver working together as a passive cardioid subwoofer featuring Passive End Fire Technology. This hybrid enclosure design is the most compact passive cardioid sub in S-Series.
Low frequency directivity control with ONLY ONE amplifier channel required - no bi-amp presets, multiple subwoofers or complex wiring to achieve directional bass reproduction!
Horn-loading for fast punch and reflex for those lower bass notes: "Best from both worlds" Extremely accurate and dynamic low frequency reproduction.
APPLICATIONS
- Noise sensitive installations
- Small to medium touring
- High end installations from night clubs to live music venues
- Low frequency extension for iCL and all S-series tops
SPECIFICATIONS
- Frequency Response (-6 dB): 38 Hz – 120 Hz
- Horizontal Coverage (-6 dB): 160 degrees
- Vertical Coverage (-6 dB): 160 degrees
- Max SPL : 126/132 dB (free space)
- Sensitivity, 1w/1m: 101 dB (free space)
- Impedance: 4 ohms
- Crossover: 80 Hz – 100 Hz active
- Power handling: 300 W(rms), 1200 W(peak)
- Recommended HP-filter: 36 Hz, 12 dB/octave
DRIVERS
- (1) x 10” cone driver, 2.56” voice coil
- (1) x 10” cone driver, 2.05” voice coil
ENCLOSURE
- Enclosure material: Birch plywood, textured black paint finish
- Grille: Cold rolled steel grille, black paint finish
- Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
- Dimensions (H/W/D): 310 mm x 500 mm x 830 mm (930 w/wheels)
- Weight: 38 kg
