C12

C-series

C12

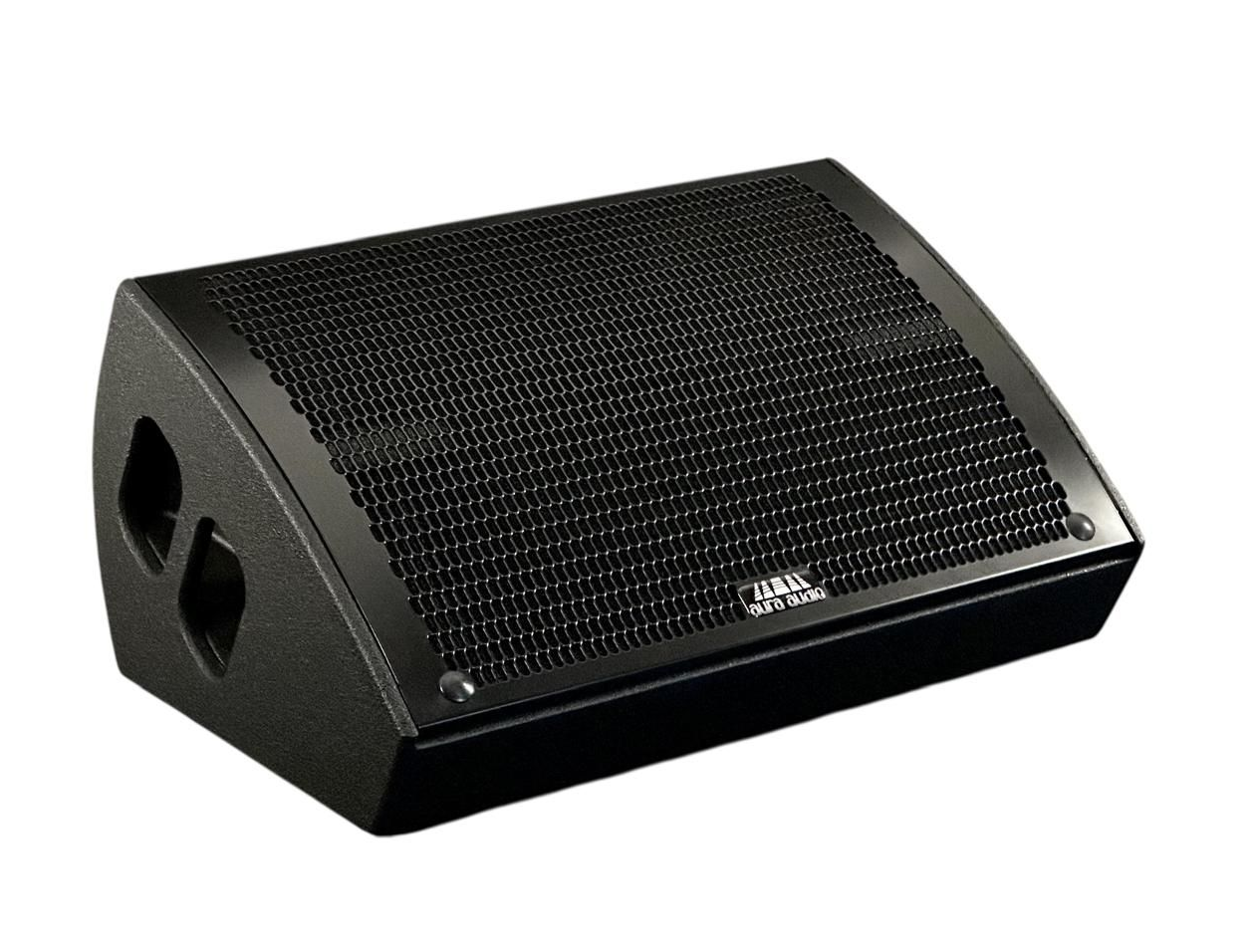

Similar to its smaller sibling, the C10, the C12 offers versatility in a compact and light weight enclosure. At just 15Kg this passive 2-way design packs an enormous punch for its size. Used as a wedge monitor its low, 30 degree, profile makes it inconspicuous on stage. The integrated 35mm stand adaptor inside the handle and optional M8 mounting points make it a flexible PA speaker.

The high power coaxial 12” + 1” neodymium driver includes a separate horn for the HF section. With a 80 x 60 degree dispersion a performer can move around freely and still continue to have even coverage across the stage. The custom designed, internal passive crossover includes a phase alignment and EQ network. Which together with the coaxial driver ensures a seamless and phase coherent transition between the low and high frequency bands. Increasing coherency, intelligibility and gain before feedback.

Details such as the CNC machined handles, with integrated stand adaptor, ultra lightweight composite enclosure and small footprint make this a truly adaptable and multi-purpose speaker.

APPLICATIONS


  • High SPL stage monitors
  • Front of house for small to
  • medium size touring
  • Medium size installations
  • Speech reinforcement
  • Music reinforcement with subwoofer

SPECIFICATIONS


  • Frequency Response (-6 dB): 85 Hz – 20 kHz

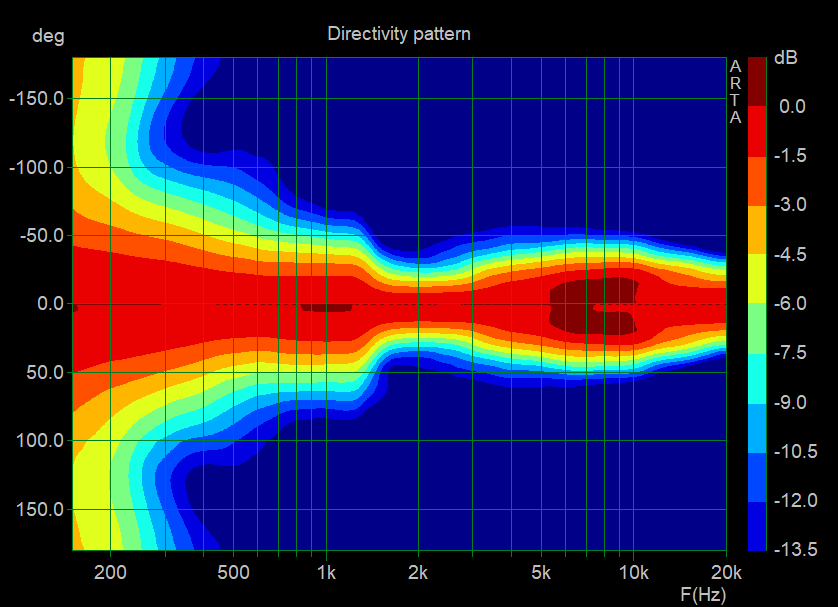

  • Horizontal Coverage (-6 dB): 80 degrees
  • Vertical Coverage (-6 dB): 60 degrees
  • Max SPL : 126/132 dB (free space)
  • Sensitivity, 1w/1m: 99 dB (free space)
  • Impedance: 8 ohms Crossover: 1.8 kHz passive
  • Power handling: 500 W cont, 2000 W peak
  • Recommended HP-filter: 65 Hz, 24 dB/octave

DRIVERS


  • LF: (1) x 12” neodymium magnet cone driver, reflex-tuned
  • HF: (1) x 1” compression driver, coaxial with separate waveguide

ENCLOSURE


  • Enclosure material: Bended birch plywood, textured black paint finish
  • Grille: Cold rolled steel grille, textured black paint finish
  • Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
  • Dimensions: 585 mm x 430 mm x 295 mm
  • Weight: 15 kg
