C15

C-series

C15

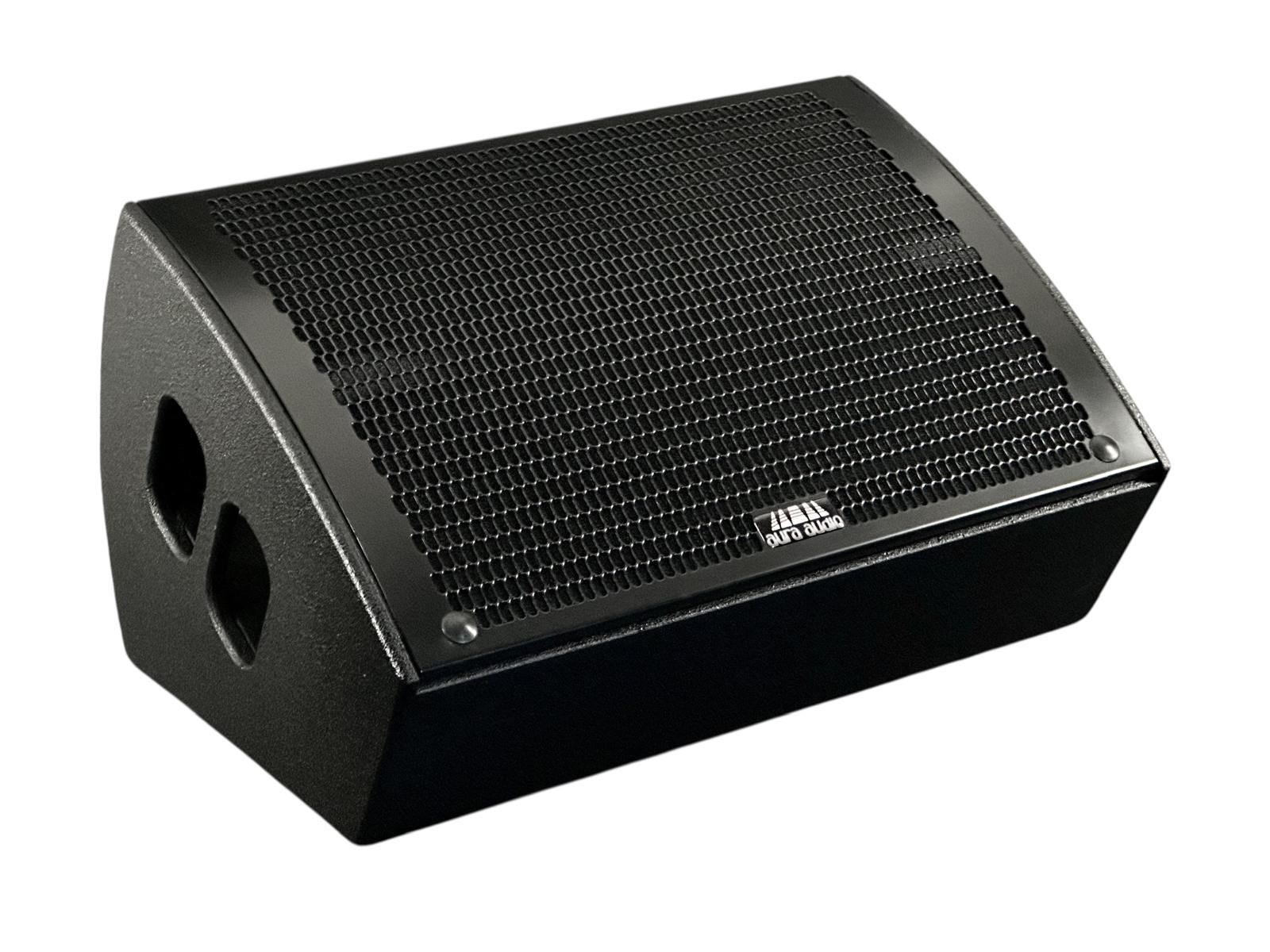

C15 is a compact, high power, passive two-way loudspeaker. Similar to its smaller brother, the C12, it is built from an ultra lightweight composite material and incorporates a 35mm stand adaptor and optional M8 mounting points, making it a flexible and powerful PA speaker. As with all the C-series models the C15 also sports a low profile 30 degree cabinet angle when used as a stage monitor. It is discrete but able to deliver high SPL. The rugged ABS handles and total weight of 18Kg make it a pleasure manoeuvre.

Using a unique coaxial 15” + 1” neodymium driver, the high frequency section includes a separate directivity horn. Delivering a symmetric 50 x 50 degree dispersion and enabling tighter control of high frequencies in both stage monitor and PA applications, compared to traditional coaxial drivers. The custom designed, internal passive crossover includes a phase alignment and EQ network. Which together with the coaxial driver ensures a seamless and phase coherent transition between the low and high frequency bands. Increasing coherency, intelligibility and gain before feedback.

As a multifunctional enclosure the C15 can be used for many different applications, both on stage and off. It is an extremely flexible addition to any inventory.

C15 speaker offers two optional parameters:
Frequency Response(-6dB):58-20kHz/(-6dB):80-20kHz
Horizontal coverage(-6dB):60-90°/(-6dB):50°
Vertical coverage(-6dB):30-60°/(-6dB):50°

APPLICATIONS


  • High SPL stage monitors
  • Front of house for small to medium size touring
  • Medium size installations
  • Speech reinforcement
  • Music reinforcement with subwoofer

SPECIFICATIONS


  • Frequency Response (-6 dB): 80 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 50 degrees
  • Vertical Coverage (-6 dB): 50 degrees
  • Max SPL : 127/133 dB (free space)
  • Sensitivity, 1w/1m: 100 dB (free space)
  • Impedance: 8 ohms Crossover: 2.5 kHz passive
  • Power handling: 500 W cont, 2000 W peak
  • Recommended HP-filter: 50 Hz, 24 dB/octave

DRIVERS


  • LF: (1) x 15” neodymium magnet cone driver, reflex-tuned
  • HF: (1) x 1” compression driver, coaxial, high directivity waveguide

ENCLOSURE


  • Enclosure material: Bended birch plywood, textured black paint finish
  • Grille: Cold rolled steel grille, textured black paint finish
  • Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
  • Dimensions: 585 mm x 430 mm x 360 mm
  • Weight: 18 kg
