D100DSP
D-series

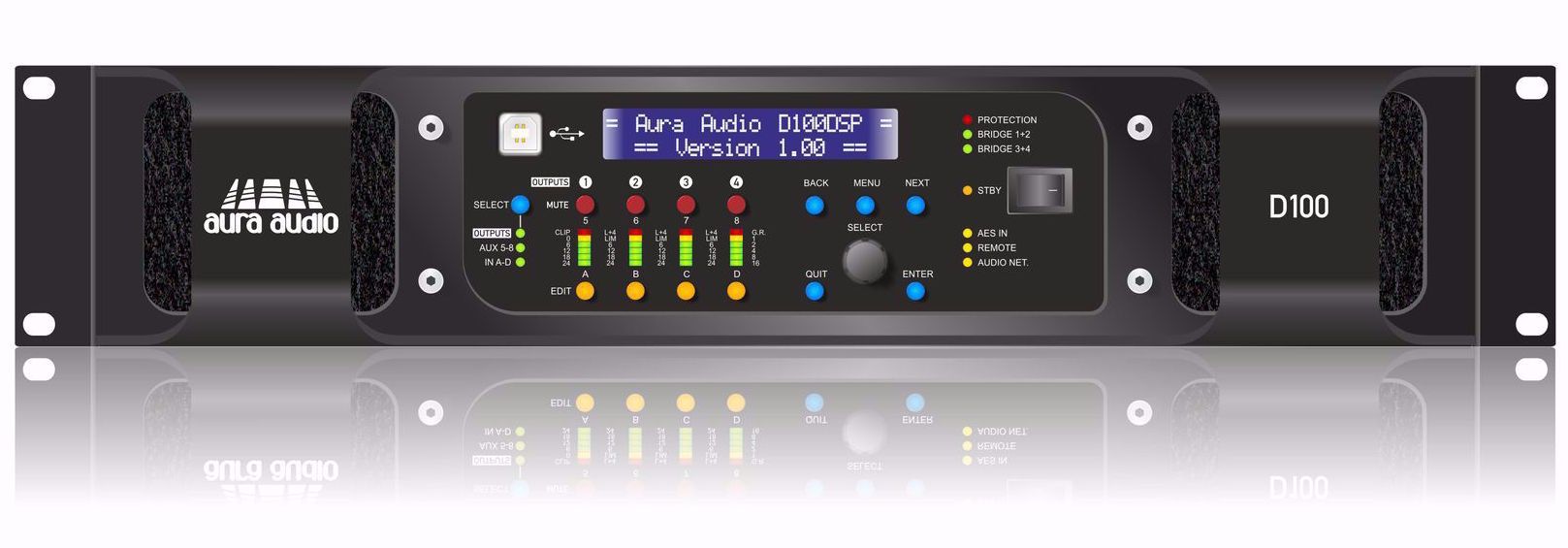

 D100DSP

D100DSP is a combination of signal processing and amplifier channels with aux DSP outputs.

Easy access control via front panel is combined with PC and iPad remote controls and wall panel for installation use.

High fidelity, high efficiency class-D power amplifier stages are powered by a switch-mode power supply.

The build-in speaker preset library for all Aura Audio speaker models with highest definition DSP processing.

SPECIFICATIONS

  • Number of amplifier channels: 4
  • Output Power: (per channel)
  • 8 ohms 1400W
  • 4 ohms 2700W
  • 2.7 ohms 3700W
  • Output Power: (bridged)
  • 8 ohms 5400W
  • 4 ohms 7000W
  • Frequency response: 20Hz-20kHz (+/-0.5dB)
  • THD+N at -1dB <0.1% (20Hz-20kHz)
  • Input CMRR: >60dB
  • Damping Factor: >400 (8 ohms/1kHz)

CONNECTIONS

  • Input connectors: 4 x XLR (two for AES)
  • Output connectors: 4 x Speakon
  • AUX DSP outputs: 4 XLR
  • Mains connector: PowerCon
  • Remote Control: USB (front panel)
  • Rear Panel: RS485 bus, Direct Ethernet, GPIO Port Dante Audio Network (optional) Up to 32 units can be connected into a closed control network

DIMENSIONS:(mm)

  • 483 (19") x 88 (2u) x 428 (mm)
  • Weight: 10.8kg

SHIPPING BOX
  • 600 x 250 x 610 (mm)
  • Shipping weight: 12.3kg
