i8SUB

i-series

i8SUB

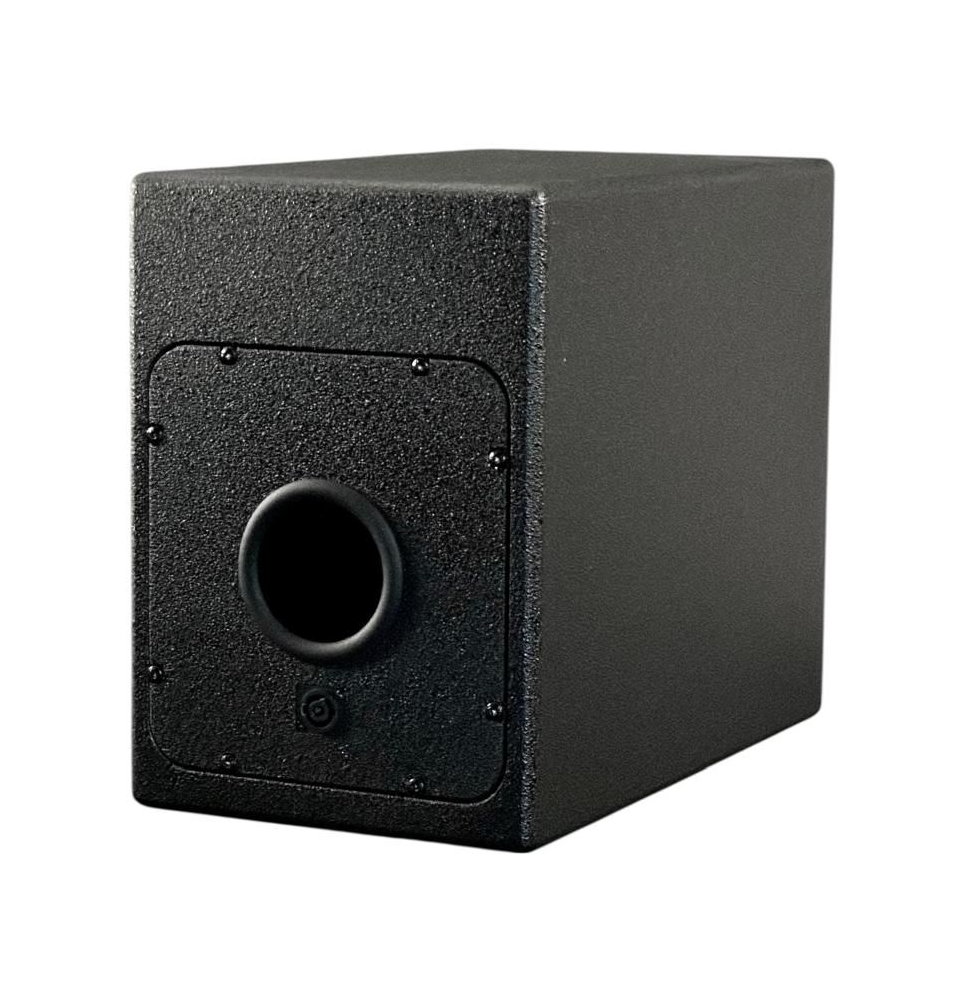

The i8SUB is an ultra compact subwoofer, complimenting the other i-Series products and extending the low frequency response of the systems. Designed to be discrete and low profile without compromising audio quality the i8SUB can be hidden inside structures, such as architectural features or anywhere space is limited.

Consisting of single 8” low frequency driver loaded with dual 4th order band-pass enclosure. The i8SUB delivers low frequencies down to an incredible 35Hz. Bringing true full range natural and uncoloured sound too any installation application.

The i8SUB is driven with the Aura Audio D2Q powered controller. Up to 8 units can be driven from a single D2Q amplifier making this combination very cost efficient without compromising sound quality.

Multiple colour options are available as a custom order, such as white and grey. Also a side-firing port option that can be used together with ceiling structures to hide the subwoofer completely.

APPLICATIONS


  • Subwoofer for restaurants
  • Low frequency extension for i-series
  • Home cinema subwoofer

SPECIFICATIONS


  • Frequency Response (-6 dB): 35–120 Hz
  • Horizontal Coverage (-6 dB): 360 degrees
  • Vertical Coverage (-6 dB): 360 degrees
  • Max peak SPL : 113 dB (free space)
  • Sensitivity 1w/1m: 90 dB (free space)
  • Crossover: 75-100Hz active
  • Power handling: 50 W rms, 200 W pk
  • Recommended HP-filter: 36 Hz, 12dB/oct

DRIVERS


  • LF: (1) x 8” cone driver, band-pass loaded

ENCLOSURE


  • Enclosure material: Finnish birch plywood,
  • textured black paint finish
  • Connectors: (1) x NL4, +/-1: LF, +/-2: -
  • Dimensions: 430 mm x 350 mm x 250 mm
  • Weight: 10 kg
