XQ48
XQ-Series

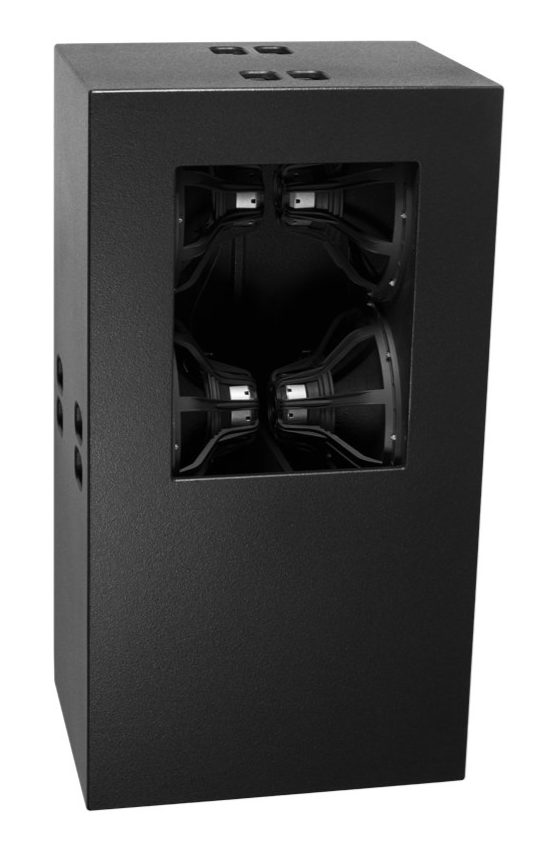

XQ48
XQ-subwoofers are designed to give the biggest punch from the smallest footprint in space limited installations.
Based on the loading principals pioneered with XD-series, the new XQ-series is a natural continuum to Aura Audio´s commitment to challenge the power to size ratio of the known professional subwoofers.
APPLICATIONS
- Front of house systems
- High quality night clubs
- Sport halls
- High quality cinema
SPECIFICATIONS
- Frequency Response (-6 dB): 30–110 Hz
- Horizontal Coverage (-6 dB): 360 degrees
- Vertical Coverage (-6 dB): 360 degrees
- Max peak SPL : 150 dB (free space)
- Sensitivity LF, 1w/1m: 107 dB (free space)
- Crossover: 65-100Hz active
- Impedance: 2 Ohms (4+4 Ohms)
- Power handling LF: 4800 W rms, 19800 W pk
- Recommended HP-filter: 28 Hz, 12dB/oct
DRIVERS
- LF: (4) x 18” neodymium magnet cone driver, band-pass horn loaded
ENCLOSURE
- Enclosure material: Finnish birch plywood,
- textured black paint finish
- Grille: Cold rolled steel grille, textured black paint finish
- Connectors: (2) x NL4, +/-1: LF, +/-2: LF (2/4 drivers)
- Dimensions: 1500 mm x 800 mm x 600 mm
- Weight: 101 kg
DOWNLOADS
