XD18i

XD-Series

XD18i

XD-series is a range of next generation subwoofers. Featuring US-patented enclosure design, a combination of assymmetric horn combined with band-pass loading gives the subwoofer high efficiency, speed and extremely low distortion figures while minimizing the off-band problems common to bass reflex and direct radiating designs. The usable frequency range also increases compared to common designs together with detail and transient output through out the whole usable bass region. The extremely accurate cone control due to three acoustically tuned segments make a huge difference to how the smallest nuances are performed. The reduced Xmax will also maximize the life of the driver.

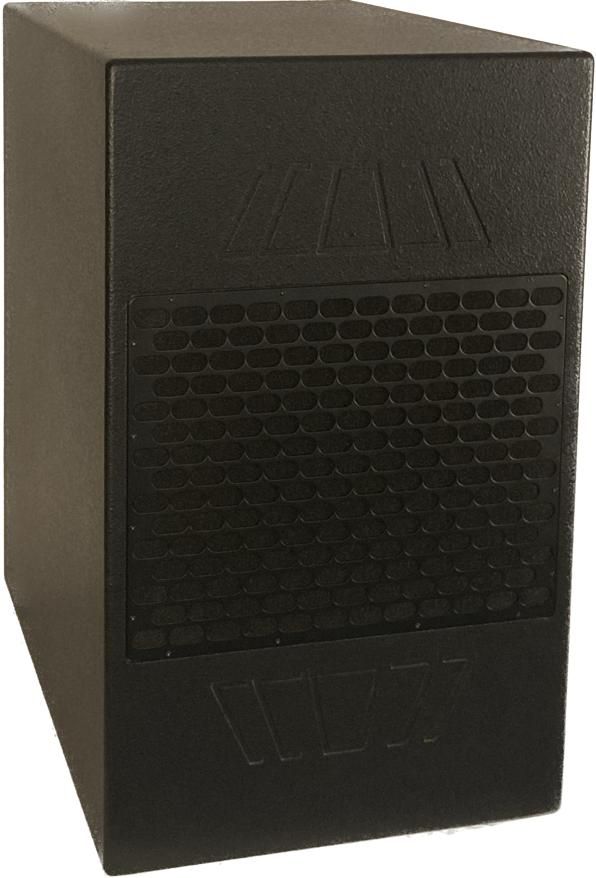

XD18i is an installation dedicated subwoofer featuring 18" high power driver in high sensitivity XD-enclosure.

FEATURES
  • unique patented design
  • extremely accurate and dynamic low frequency reproduction
  • high power, long excursion 18” cone driver
  • extreme power to size ratio
  • rugged birch plywood construction
  • textured semi-matt black paint finish

APPLICATIONS


  • medium and large size installations
  • night clubs and live music venues
  • low frequency extension for A-, C- and i-series

SPECIFICATIONS


  • Frequency Response (-6 dB): 39 Hz – 150 Hz
  • Horizontal Coverage (-6 dB): 360 degrees
  • Vertical Coverage (-6 dB): 360 degrees
  • Max SPL: 131/137 dB (free space)
  • Sensitivity, 1w/1m: 100 dB (free space)
  • Impedance: 8 ohms
  • Power handling: 1200 W(rms)

DRIVERS


  • LF: (1) x 18” cone driver, 4” voice coil

ENCLOSURE


  • Enclosure material: Birch plywood,
  • textured black paint finish
  • Grille: Cold rolled steel grille,
  • textured black paint finish
  • Connectors: (2) x NL4, +/-1: Input, +/-2: Linked
  • Dimensions: 900 mm x 550 mm x 800 mm (940 w/ wheels)
  • Weight: 75 kg
