FSUB
F-series
FSUB

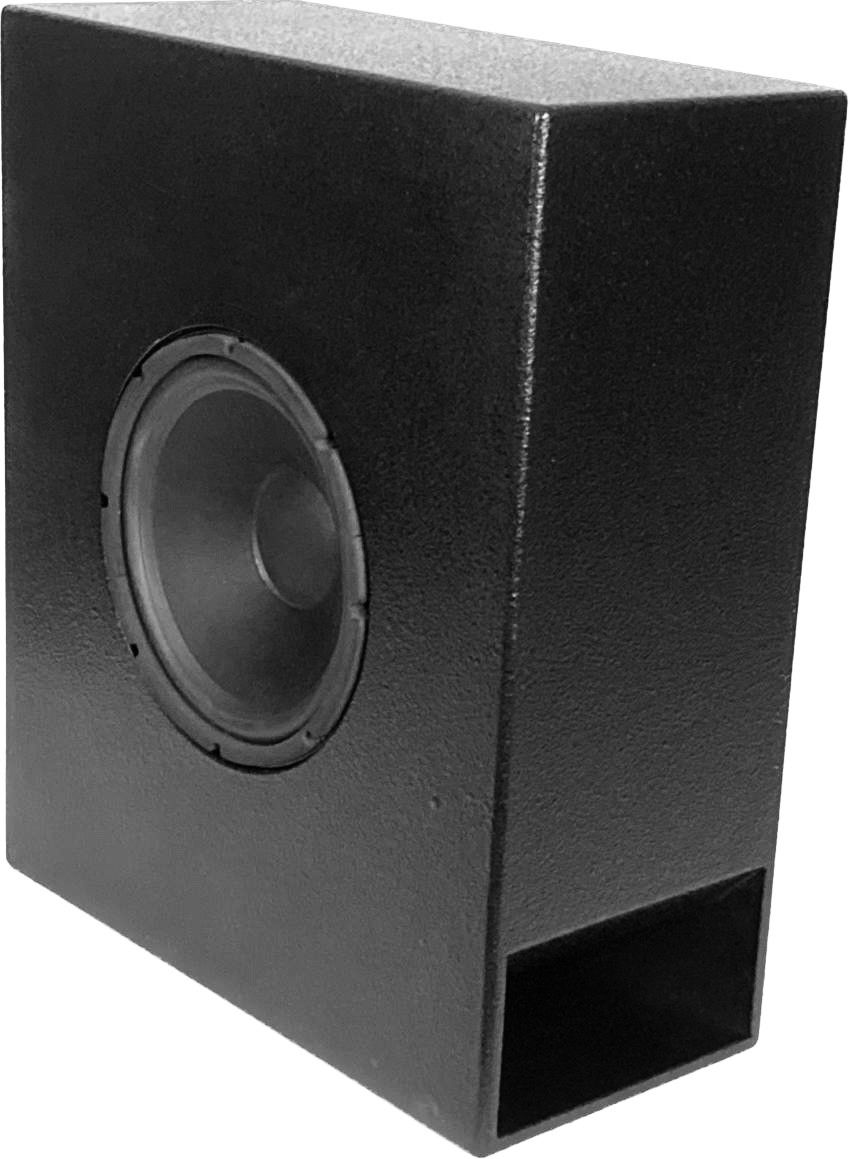

FSUB is a passive subwoofer to be used with F1 and F2 studio monitoring systems. Long excursion 12" sub bass driver reaches down to 22Hz extending even the full range performance of F2 system.
FSUB is driven with Aura Audio D2 amplifiers utilising 2.1 signal management perfectly matching with both F1 and F2 covering the bass frequency range from 95Hz down to 22Hz when used with stereo F1 monitors and extending the sub bass response when used together with F2 system.
FEATURES
Extended frequency response to 22Hz
Small depth to save space in control rooms or when installed behind a screen
Rugged birch plywood construction
Textured semi-matt black paint finish
(other finish options on request)
APPLICATIONS
- Sub extension for F1 and F2
- Recording and mastering studios
- High-end home theater
- Small to medium high-end installations
SPECIFICATIONS
- Frequency Response (-6 dB): 22 Hz – 100Hz
- Max SPL (passive): 122 dB (half space)
- Nominal Impedance: 8 ohms
DRIVERS
- LF: (1) x 12” long excursion cone driver
ENCLOSURE
- Enclosure material: Birch plywood, textured black paint finish
- Dimensions: 700mm x 600cm x 280mm
- Weight: 18kg
